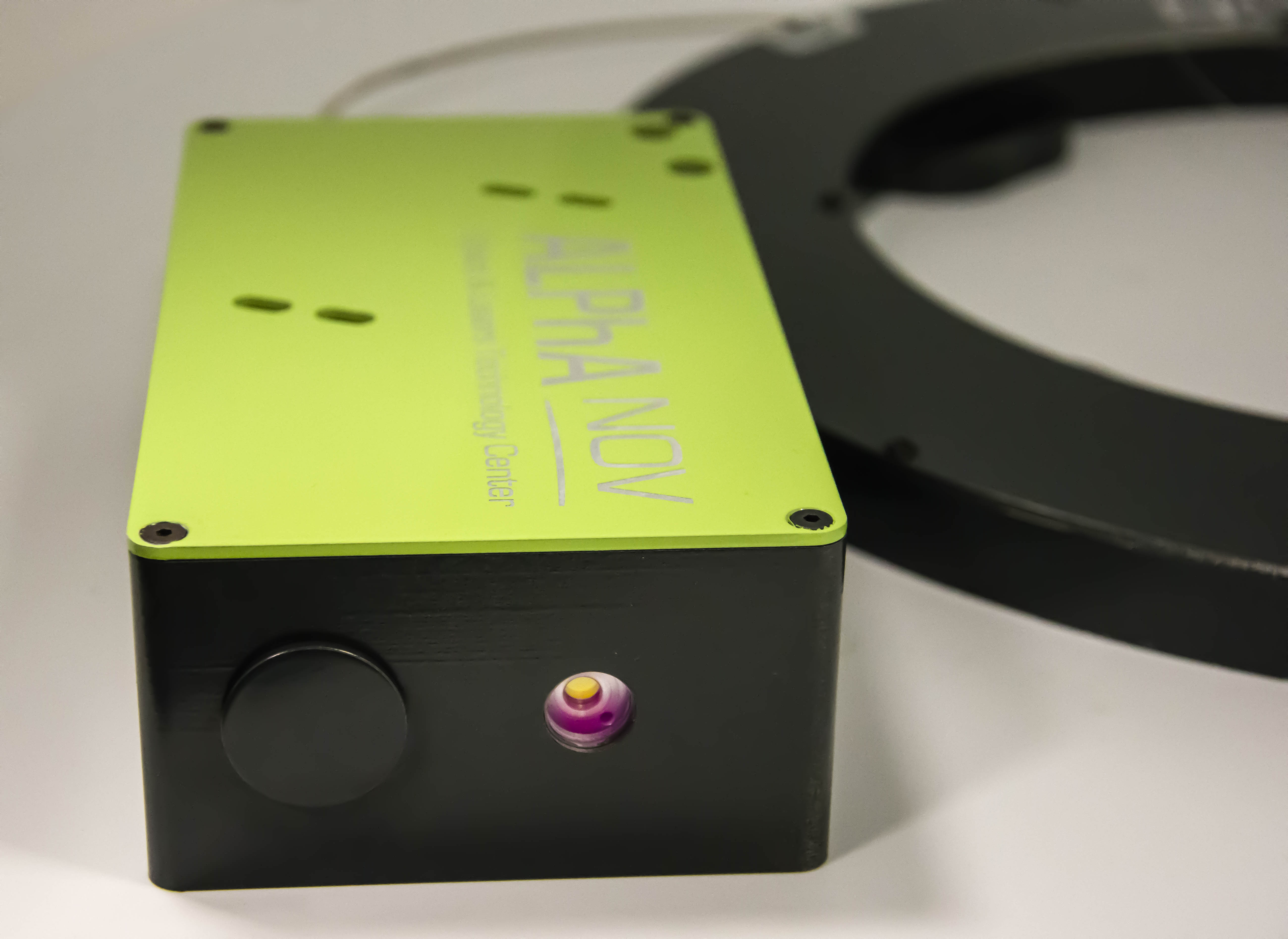

TURN-KEY: 100W-CLASS PCF AMPLIFIER UNIT
Based on its expertise in laser design and photonic crystal fiber interfacing, ALPhANOV developed a technology to build turn-key 100-Watt-class monolithic laser amplifiers with superior stability.
This technology relies on a Yb-doped microstructured fiber architecture. It can be tailored to meet specific requirements in terms of power, temporal regime and other functionalities.
Optical performance | |
Operational wavelength | 1030-1064nm |
Operational regime | Pulsed / single-frequency |
Pulse repetition rate | 50MHz typ. |
Input signal power | 2-4W |
Output power | >100W |
Output peak power | 0.5 MW typ. |
Output pulse energy | 1mJ |
Amplifier gain | 17-20dB (*) |
Output beam quality | M² |
PER | >15dB |
Output power tuning | 5-100% |
Output free space beam size (1/e²) | 2-4mm |
Output long term power stability (hrs) | <2% |
Stability
| 1000hrs |
Optical interfaces | |
Input interface | High power FC/APC connector, bare fiber
|
Output interface | End-cap, SMA connector, collimator and/or isolator |
Pump specification | |
Number of diode ports | 2 or 6 (on-demand) |
Pump diodes | Up to 60W, CW or pulsed |
Electrical & mechanical specifications
| |
AC input | 220V |
Computer control interface | USB |
Diode driver control | Analog |
Cooling | Water |
(*) ALPhANOV recommends a gain of 17-20dB or less. A tap coupler with a detection circuit is implemented to prevent self Q-switching.
Special requests:
Pre-amplifying on-demand
Specific fiber amplifier developments on-demand
Possibility to build a complete laser architecture with oscillator and SHG/THG module
